Klon KTR

• Collection: Boutique Range
• Type: Overdrive
• The revised production version of the legendary Klon Centaur
• Three controls: Gain, Treble, and Output (GTO)
• Clean boost mode at minimum Gain — enormous headroom, zero distortion

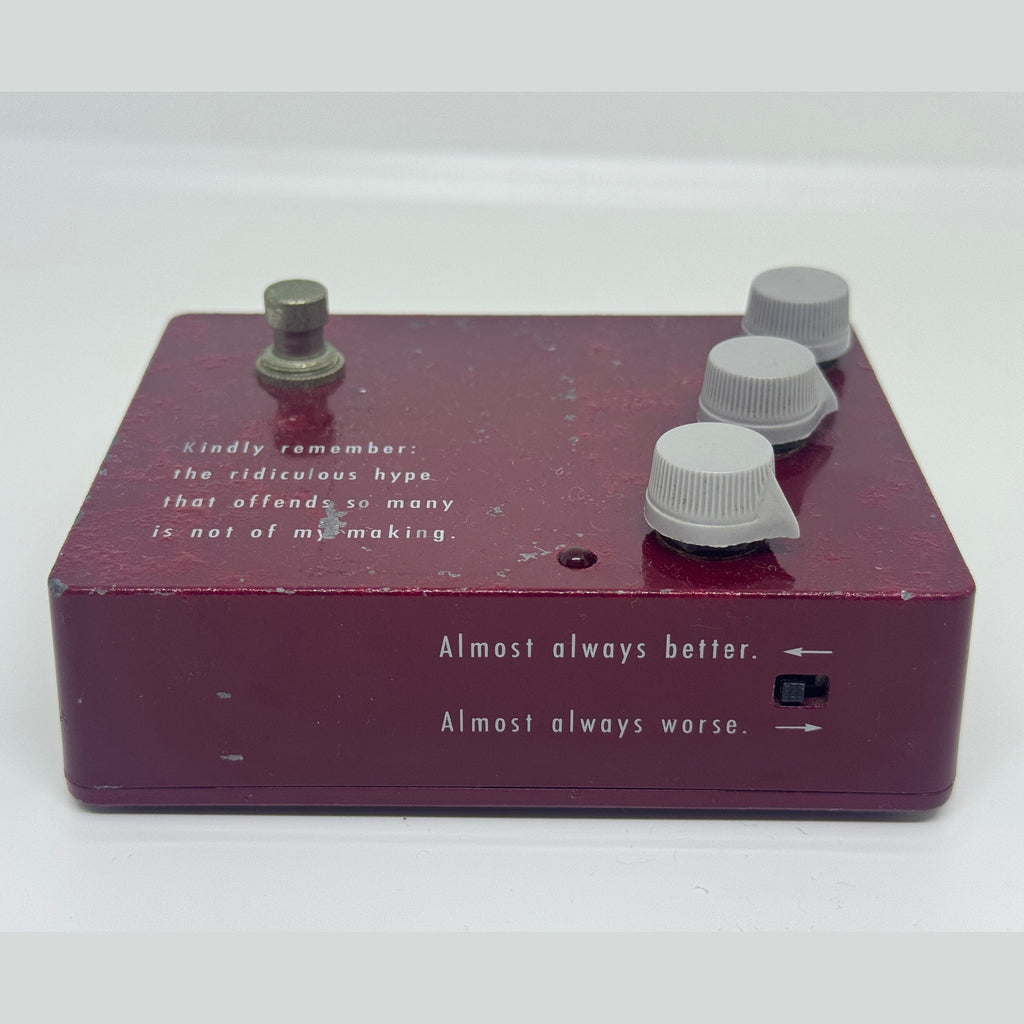

• Toggle switch for buffered or true-bypass output when effect is off


PL Notes:

Is this thing really that good? Surely it's overhyped? Only one way to find out and that's not spending a few minute playing it on a guitar and amp that are not your own. YOU NEED TO BORROW THIS! When I got this for the library and played it I immediately thought "oh man, this is going on my board".

INSTRUCTIONS FOR THE REVISED KLON OVERDRIVE

Controls: Left-to-right, the controls are Gain, Treble and Output. The Gain setting determines how much or how little distortion the unit is generating on its own Treble and Output are self-explanatory. For aesthetic reasons it made no sense to include the control designations as part of the screen printing on the unit,* but here is a useful mnemonic device: GTO.

Treble setting: Don't reflexively leave your Treble setting at noon, us a lot of players seem to do with the tone controls on their pedals. The Treble control is capable of providing subtle gradations in high-frequency response, and is usable and natural sounding throughout its entire range; trust your ears, and use the control.

Output setting: To use the unit as a true overdive - hitting whatever follows it in your signal path harder than your straight through signal would - your Output setting will most certainly need to be above above 10:00. Different amps and pedals have different input stage headroom characteristics, so take some time to experiment with the Output to find whatever setting gives you the best results with your particular rig; often settings in the 11:00 - 1:00 range work well.
